B230 Raised Edge Trim (3m)
or
Raised Edge Trim - Flat roof edge detail to prevent water run off.
Vertical face: 105mm
* Installation diagram applies to B230 and all B Raised Edge trims, incl Heavy Duty.

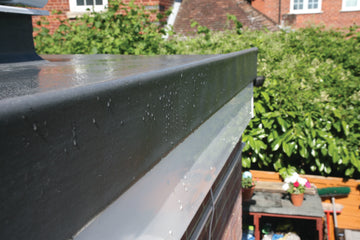

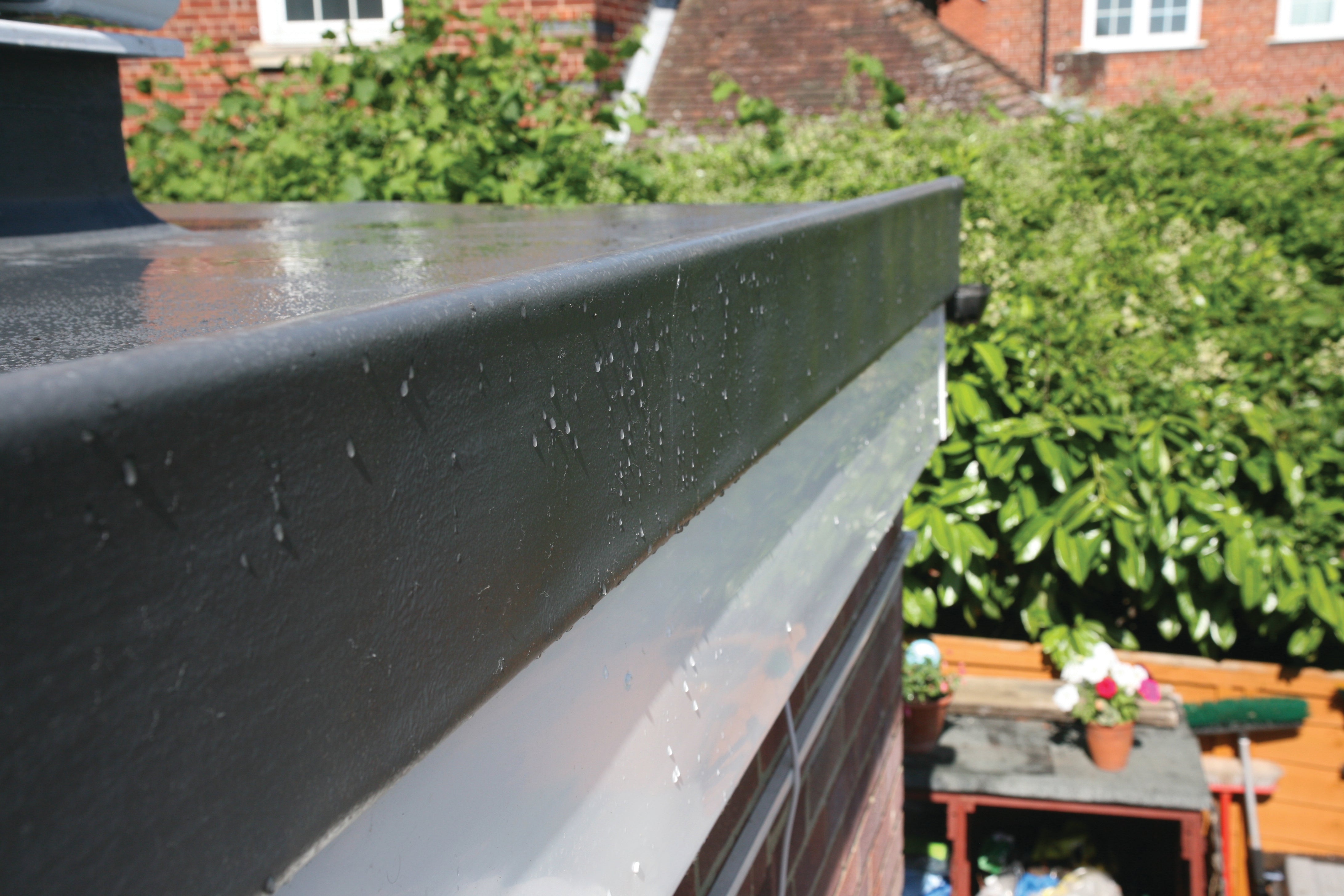

The B230 is installed around the perimeter to guide water off the roof.
A single batten is fixed level with the top edge of the deck. Apply the Cure It Trim Adhesive in a
continuous strip along the batten, then rub the trim into place and nail through the top of the trim into the decking. Do not nail through the front of the trim.
If a ladder is likely to be leant against a B type trim for regular access to the roof, the trim will need to be reinforced to avoid deformation. The trim can either be doubled up by slotting a section of extra trim within the section where the ladder will be used or it can be reinforced with an extra layer of Cure it laminate and then tissue to maintain a smooth finish. Alternately, a wooden batten can be shaped and fitted into the ridge of the trim to ensure that it remains rigid. *The easiest solution if your worried about damage/warping is to purchase the Heavy Duty B260 trim.
